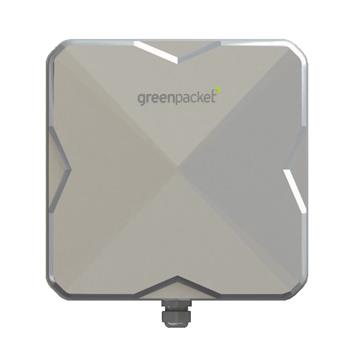

SWAN Anténa GreenPacket OA335 pre LTE 3,7 GHz - exteriérová anténa GreenPacket pre príjem LTE signálu operátora SWAN na frekvencii 3.7 GHz.
Určené iba pre lokality s možnosťou predaja balíka XL !!!
Objednávať môžu iba zmluvní partneri SWAN!

Rozmery 288 (H)x 288 (W)x 88 (T) mm
Hmotnosť 2,5 Kg
Farba biela

3GPP Release Version Release 12
UE Category Cat.12
LTE supported band combination: Band B42, B43, Band 1/3/7/8/20/38/41/42/43/48
Carrier Aggregation DL 2CA (4x4 MIMO 64 QAM);
DL 4CA (2x2 MIMO 256QAM)
UL 2CA
MIMO DL 2x2 MIMO (4CA). DL 4x4 MIMO (2CA). UL 2x2 MIMO.
Ethernet port Gigabit RJ-45 port x 1
Antenna Number 4
Antenna Peak Gain 16dBi (pure B42/43 model), 12dBi 3.4~3.80 GHz, 7 dBi 1.7~2.69 GHz, 3 dBi 0.7~0.86 GHz
LED Indicators Power, SIM/ Internet, LAN, Signal Strength x 4, 8 LEDs in total
Reset/ Reboot button Tact switch In side the housing
Power supply Input: Universal range 100~240VAC
Output: 24V/ 1A DC

Indoor unit, Wi-Fi VoIP Router
11 ac/b/g/n compliant

Gigabit WAN RJ-45 port x1 (for PoE injector)
Gigabit LAN RJ-45x 2
RJ-11 port x 1
LED indication:
Power/ Internet/ Wi-Fi 2.4G/ Wi-Fi 5G/
USIM/ Voice/ Signal Strength
AC 90~240V
DC 24V 1A
